Laser Profiling Assessments
Diversified Integrity Resources offers a variety of sophisticated laser profiling services for both ATEX (Class 1 Division 2) and Non-ATEX environments.
Geometric Pipeline Profiling

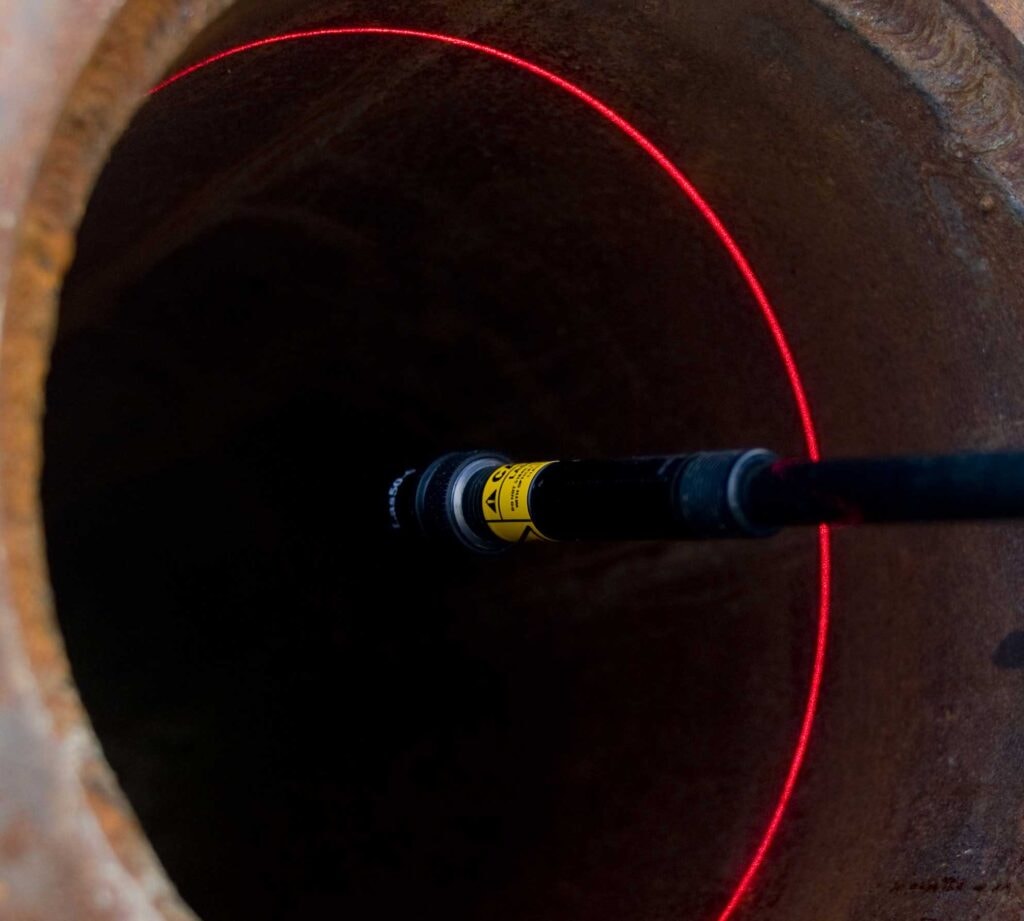

Utilizing highly sophisticated Laser Measurement Technology, DIR can geometrically profile the inside of buried pipelines. The captured profile data is analyzed to verify proper pipe installations, quality defects, partial collapses, possible erosion or corrosion, remaining pipe integrity or pipe life, and potential lining or remediation strategies.
LaserScan Measurement
For the LaserScan measurement, the camera is aligned with the inner pipe wall so that the distance to the camera is determined on the basis of two laser points. The entire profile is measured and any deviations in the sewer reach are recorded while the equipment is reversing out of the pipe with the camera simultaneously rotating. Laser Ring Measurement Software provides pinpoint accuracy so that point repairs can be made, as necessary.
Detectable Problems
DIR's use of Laser Measurement Technology detects a wide variety of different problems including: Separated or Offset Joints, Leaks, Broken Pipe, Root Intrusion, Excessive or Impeded Water Flow, Bellies in a Pipe, Debris or Obstructions (Sand Infiltrations), and Service Connection locations.
Profile Analysis with IKAS Evolution
The software platform is modularly expanded to include the functions of profile analysis and deformation measurement. The data is used to gain insights that go beyond purely optical inspection. The results can be visualized with descriptive graphics and output in individually configurable reports.
